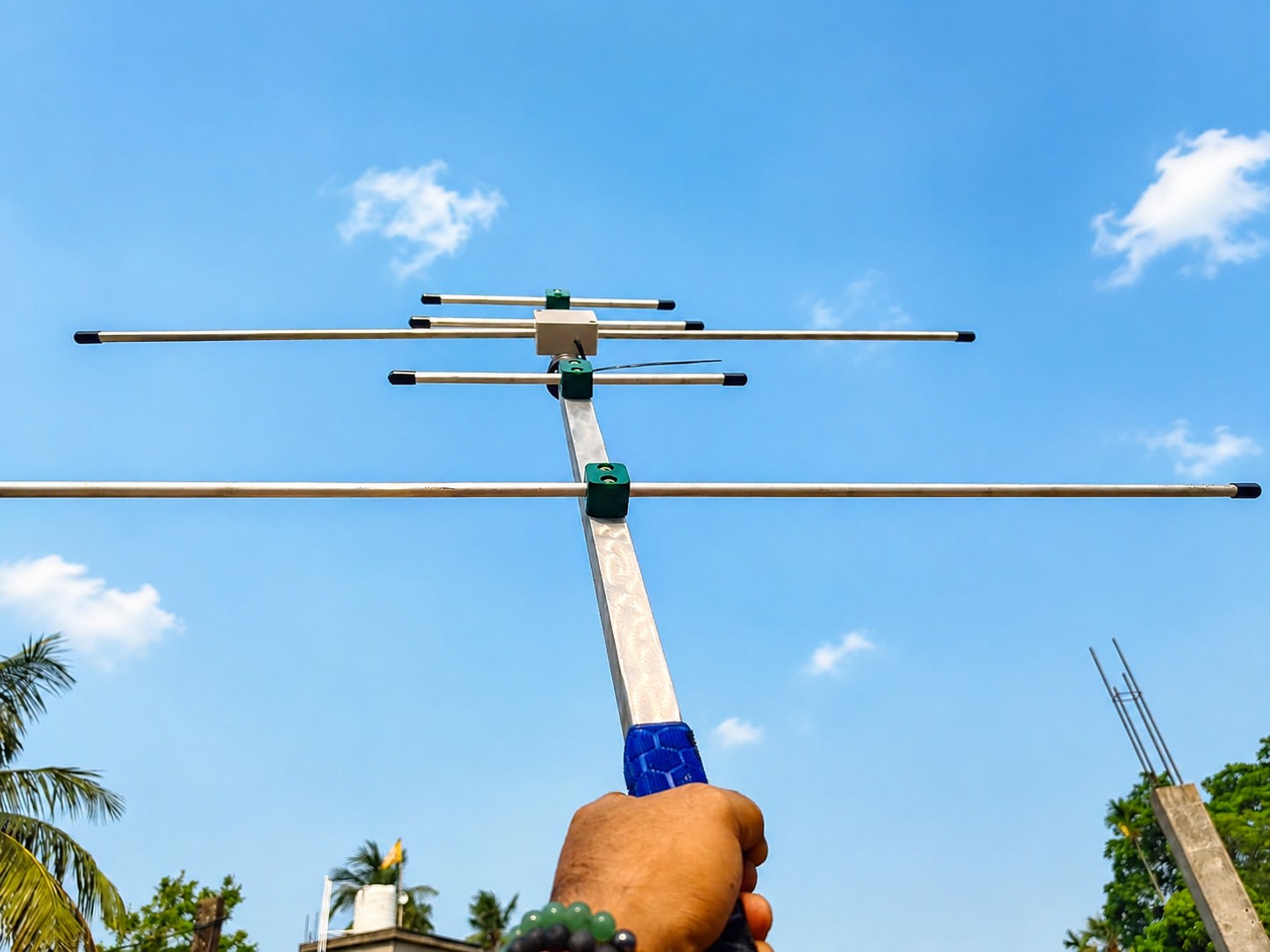

RADIOHUB Dual-Band 5-Element Yagi Antenna - Image 1

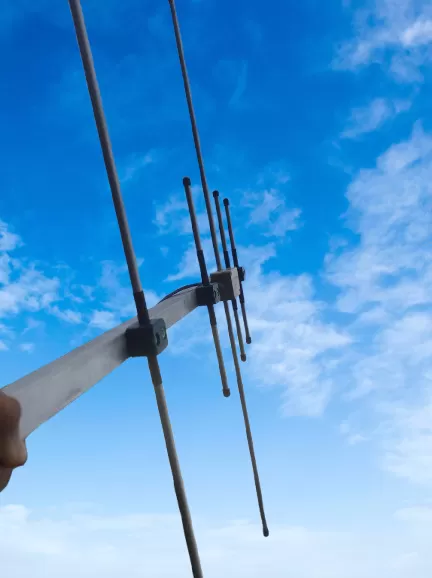

RADIOHUB Dual-Band 5-Element Yagi Antenna - Image 2

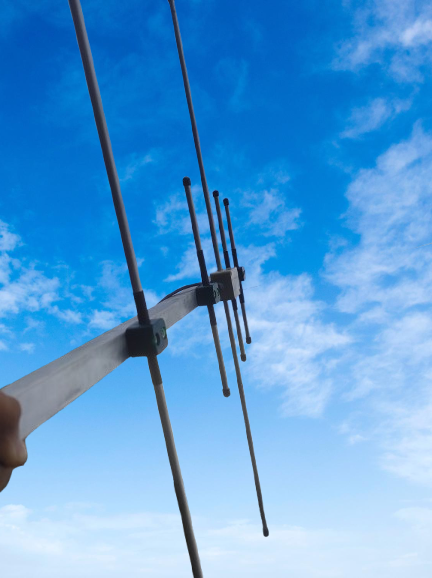

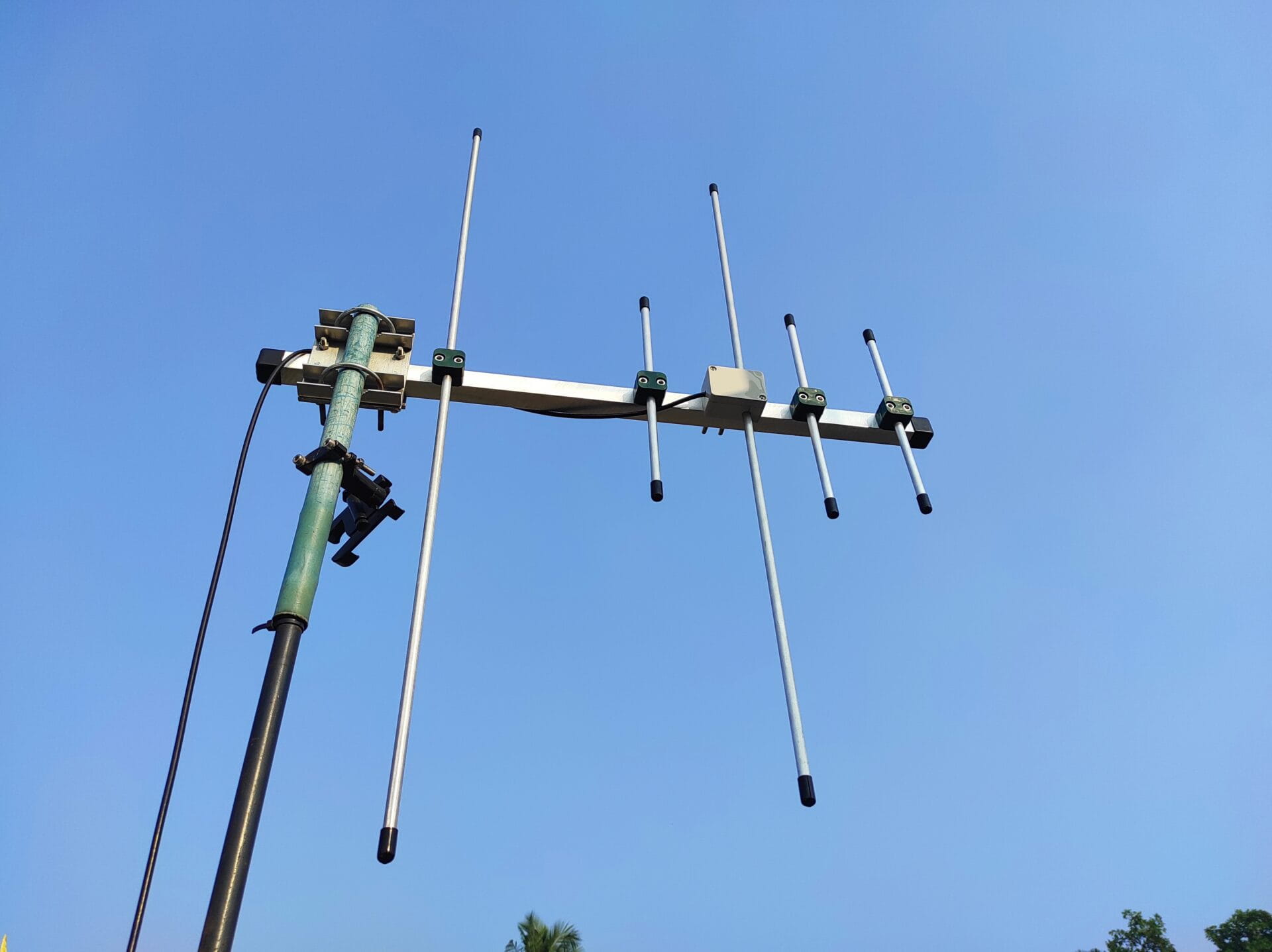

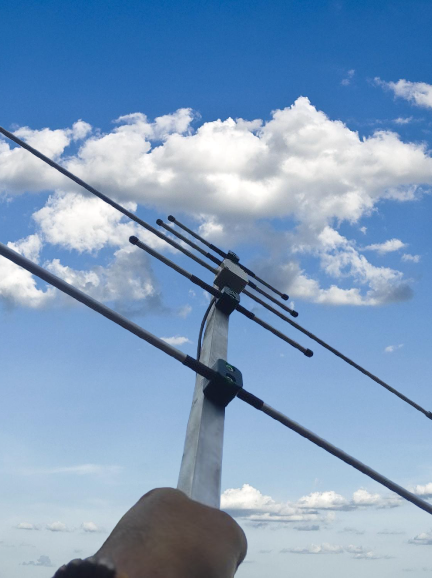

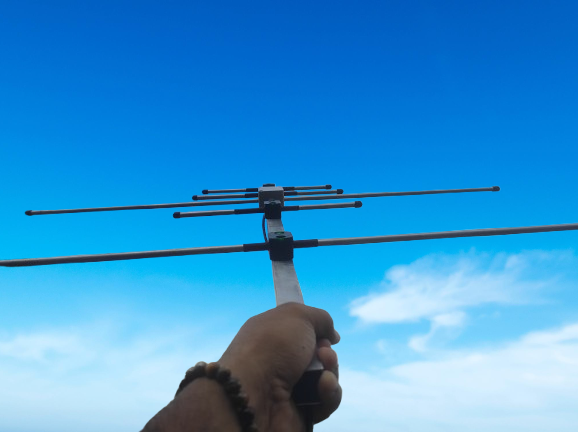

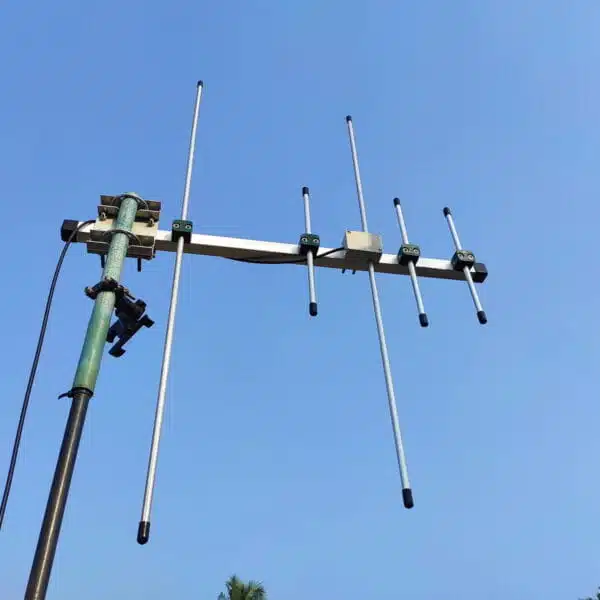

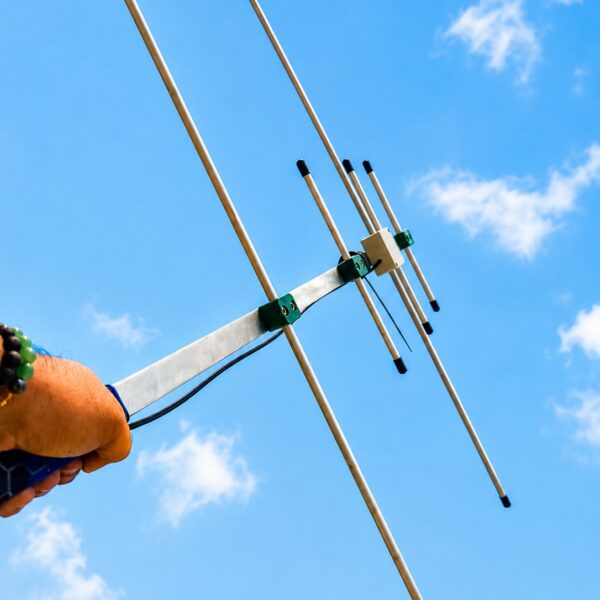

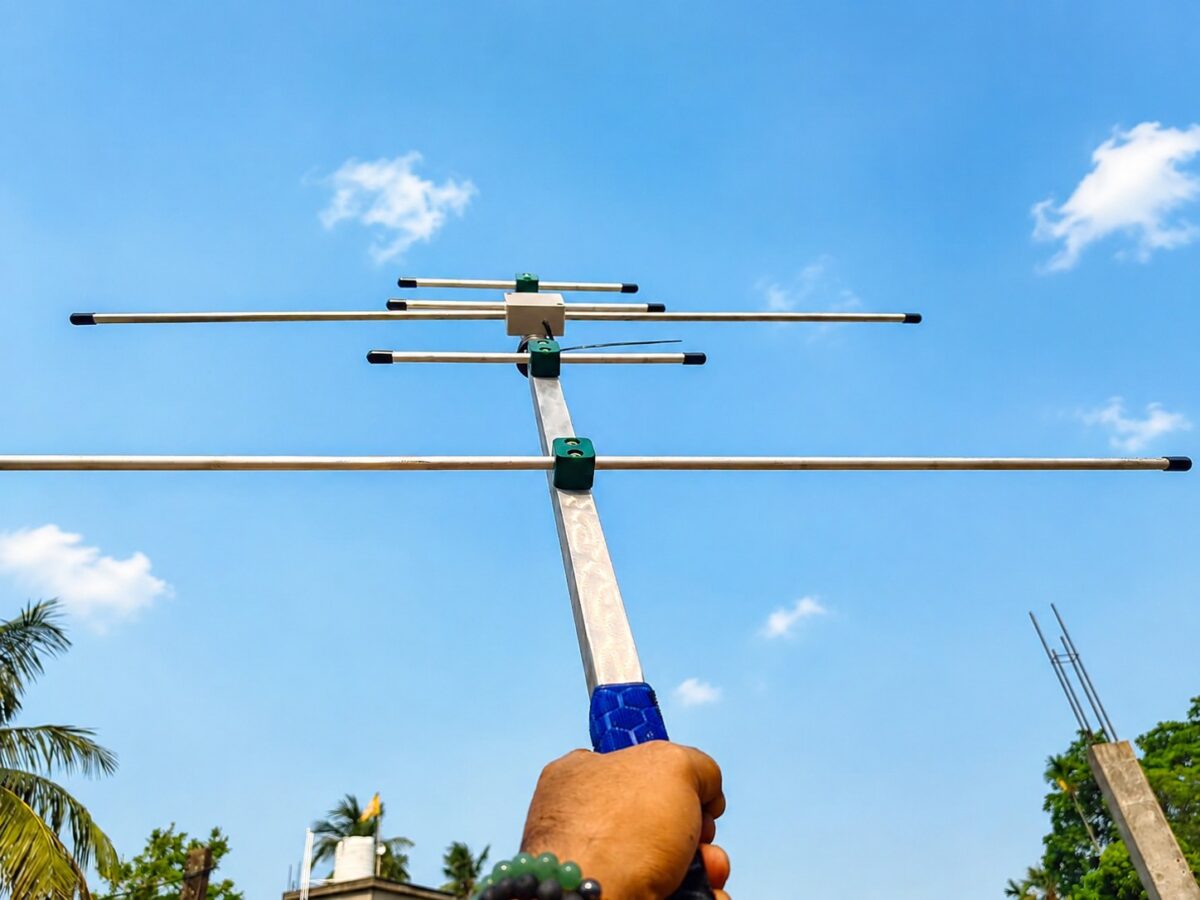

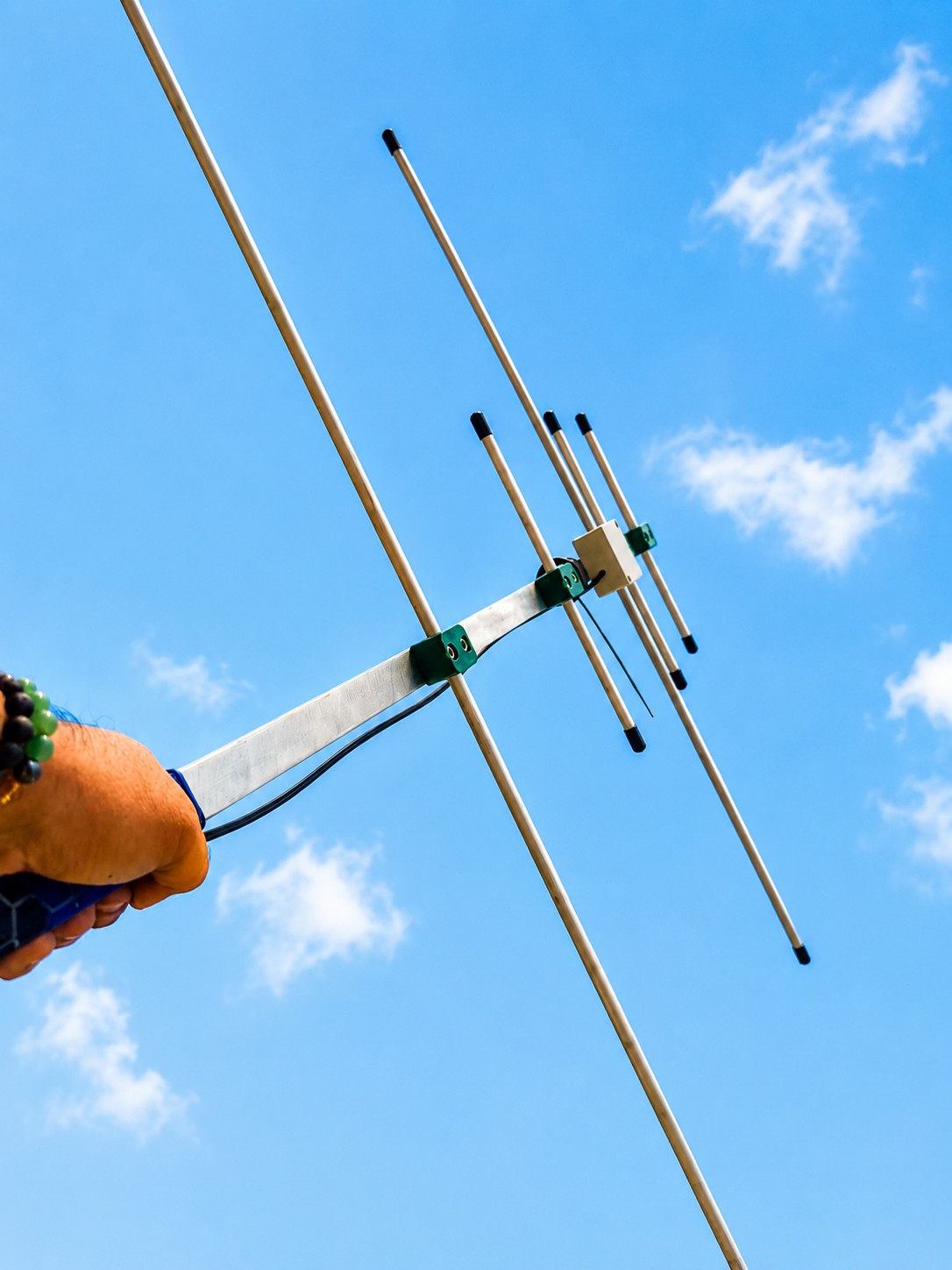

RADIOHUB Dual-Band 5-Element Yagi Antenna

RADIOHUB Dual-Band 5-Element Yagi Antenna

SKU: RHDB5E

RADIOHUB Dual-Band 5-Element Yagi Antenna

(145 MHz / 435 MHz | 2m & 70cm | Handheld | Satellite Ready)

New Year's Biggest sale

Hurry and get attractive discounts on selected devices

RH_NEWYEAR_26

₹ 3,000.00

In stock (can be backordered)

Enquire now

Ask a Question

Compare

Add to wishlist

15 People watching this product now!

Pick up from the Radiohub Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Warranty 1 year

Payment Methods:

Description

The RADIOHUB Dual-Band 5-Element Yagi Antenna is a compact, high-performance directional antenna designed for handheld operation on the 2-meter (145 MHz) and 70-centimeter (435 MHz) amateur radio bands. Engineered for portable satellite communication, this antenna features 2 elements for VHF and 3 elements for UHF, delivering excellent forward gain, directivity, and low SWR across both bands.

Crafted with precision using 10mm hollow aluminum rods and a robust 25mm square aluminum boom, this Yagi offers an ideal balance between strength, weight, and efficiency, making it perfect for field use, satellite tracking, and communication on-the-go.

Model: RH-DBY5
Type: Directional Dual-Band Yagi Antenna
Application: LEO Satellite Communication (Amateur Satellite, ISS, Weather Satellites, etc.)

Technical Specifications

Feature	Specification
Frequency Bands	VHF: 144–146 MHz (2M Band) UHF: 430–440 MHz (70cm Band)
Elements	5 Total • 2 Elements for VHF • 3 Elements for UHF
Gain	VHF: 3.5 dBi UHF: 5.5dBi
Front-to-Back Ratio	>15 dB (typical for both bands)
SWR (VSWR)	≤1.5:1 on both bands
Polarization	Linear (Horizontal or Vertical, user configurable)
Boom Length	Approx. 1000 mm (3.3 ft)
Boom Material	High-strength Aluminum Alloy, 25mm square tube
Element Material	10mm hollow aluminum rods (lightweight and corrosion-resistant)
Connector	1.5 meter RG58 Cable with UHF Male connector
