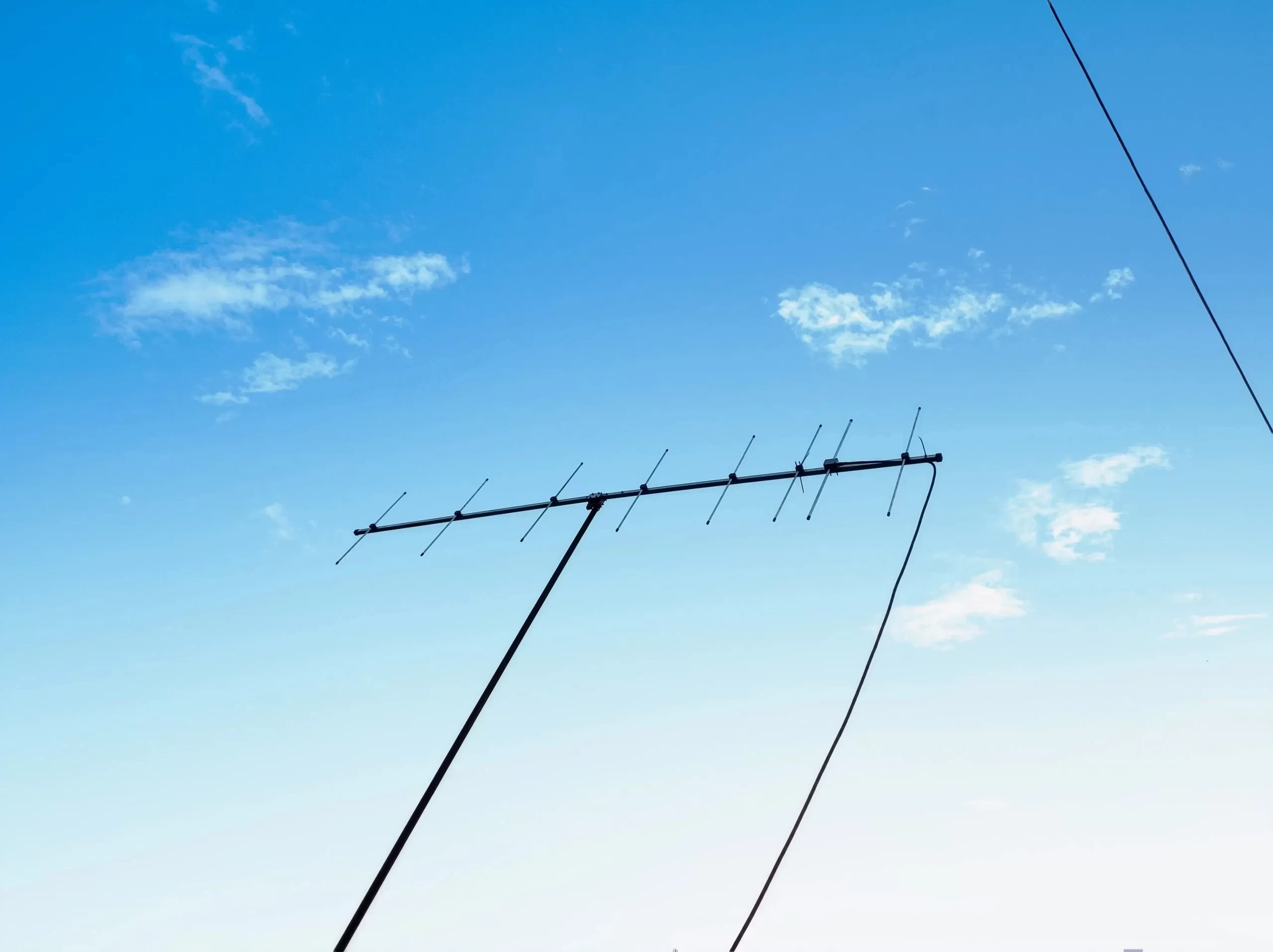

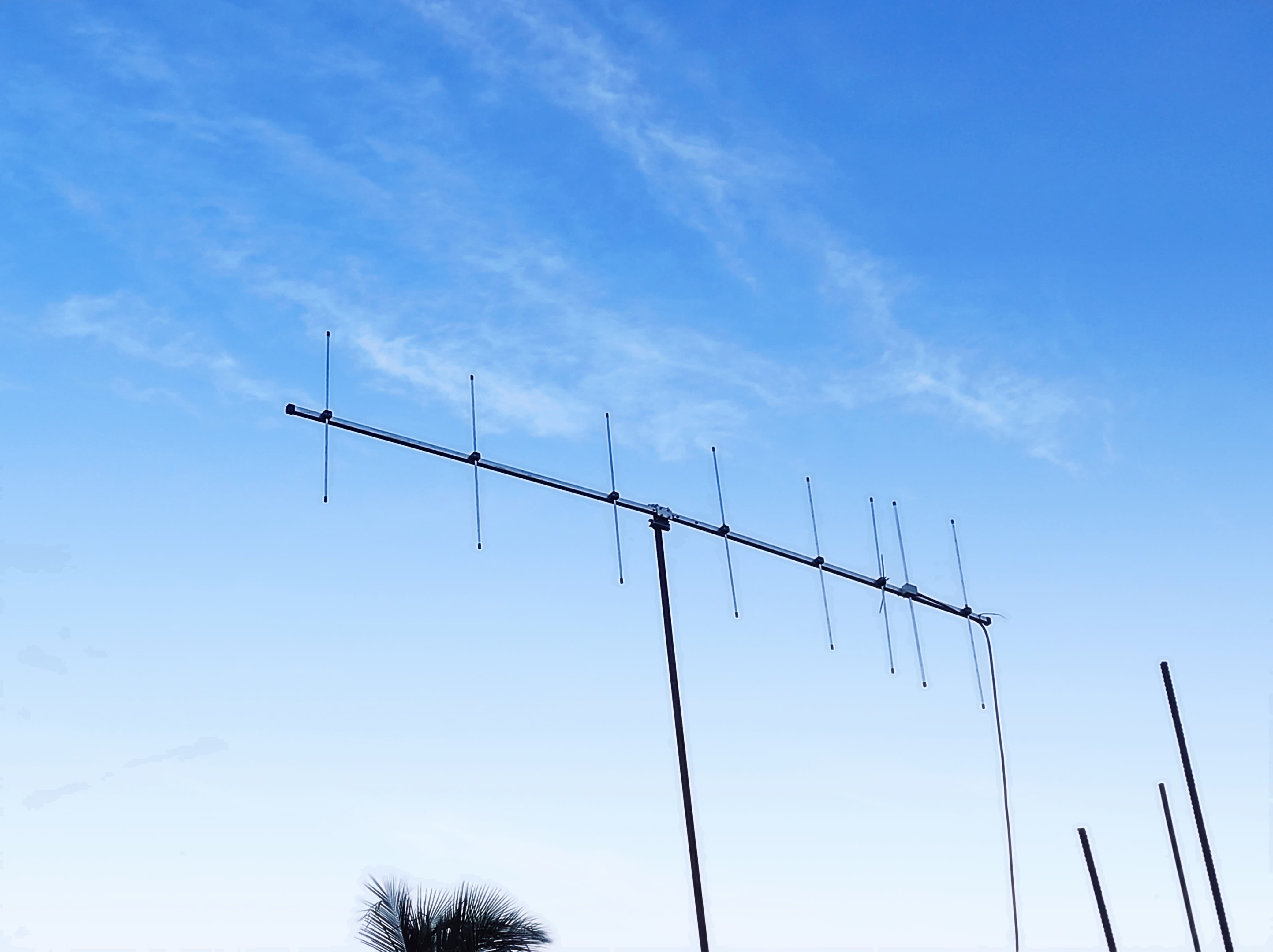

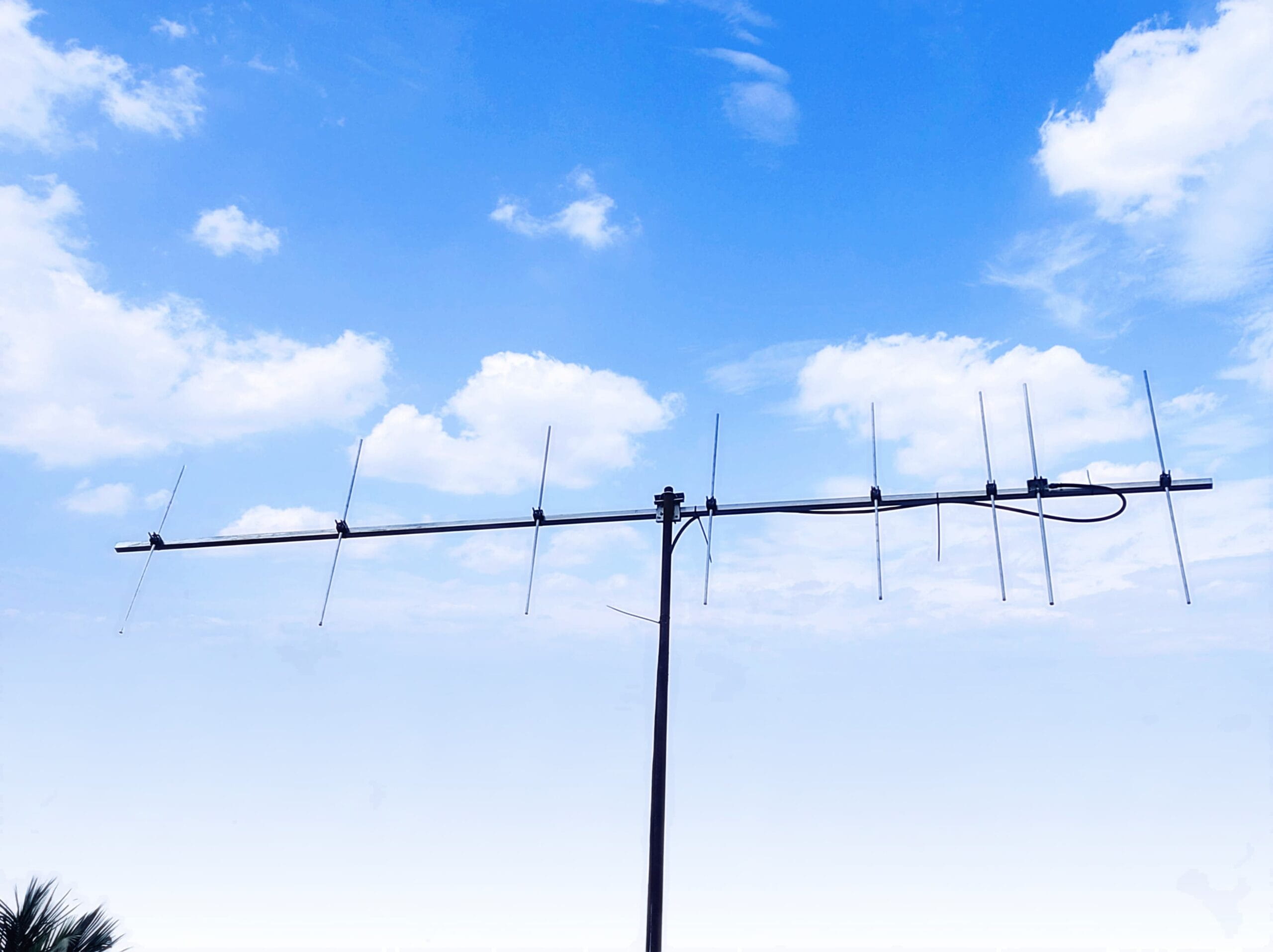

RADIOHUB 8 Element VHF Yagi Antenna – Model: RH-VHF8

The RADIOHUB RH-VHF8 8 Element VHF Yagi Antenna is a high-performance directional antenna designed for superior communication in the 144–146 MHz amateur radio band. Built with precision engineering and premium-grade aluminum, it delivers exceptional durability, excellent gain, and low signal loss, making it an ideal choice for serious ham radio operators.

Technical Specifications:

• Model: RH-VHF8

• Frequency Range: 144–146 MHz

• Gain: 17 dBi

• Front-to-Back Ratio: 28 dB

• SWR: Below 1.5 across the band

• Boom Length: 12 ft (split into two 6 ft sections for easy transport)

• Elements: 8, made from 10 mm hollow aluminum rods

• Boom Material: 25 mm square aluminum

• Recommended Coax: Low-loss types such as RG-213 or LMR-400

Key Features:

• High directional gain for extended range and strong signal clarity

• Optimized for low SWR, ensuring efficient power transfer

• Excellent front-to-back ratio to reduce interference from unwanted directions

• Lightweight yet robust construction for long-term outdoor use

• Suitable for DX, contesting, and fixed or portable station setups

• Processing & Dispatch:
  Orders for the RH-VHF8 are processed and dispatched within 10 working days from the date of order confirmation.


The RADIOHUB RH-VHF8 is engineered to deliver reliable, high-gain performance for VHF communications, making it the go-to solution for demanding amateur radio applications.
