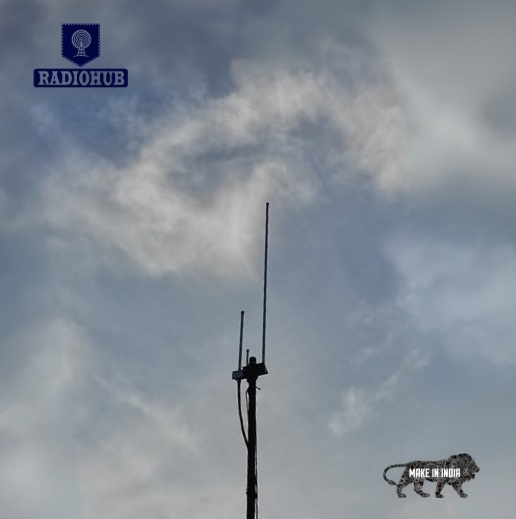

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ

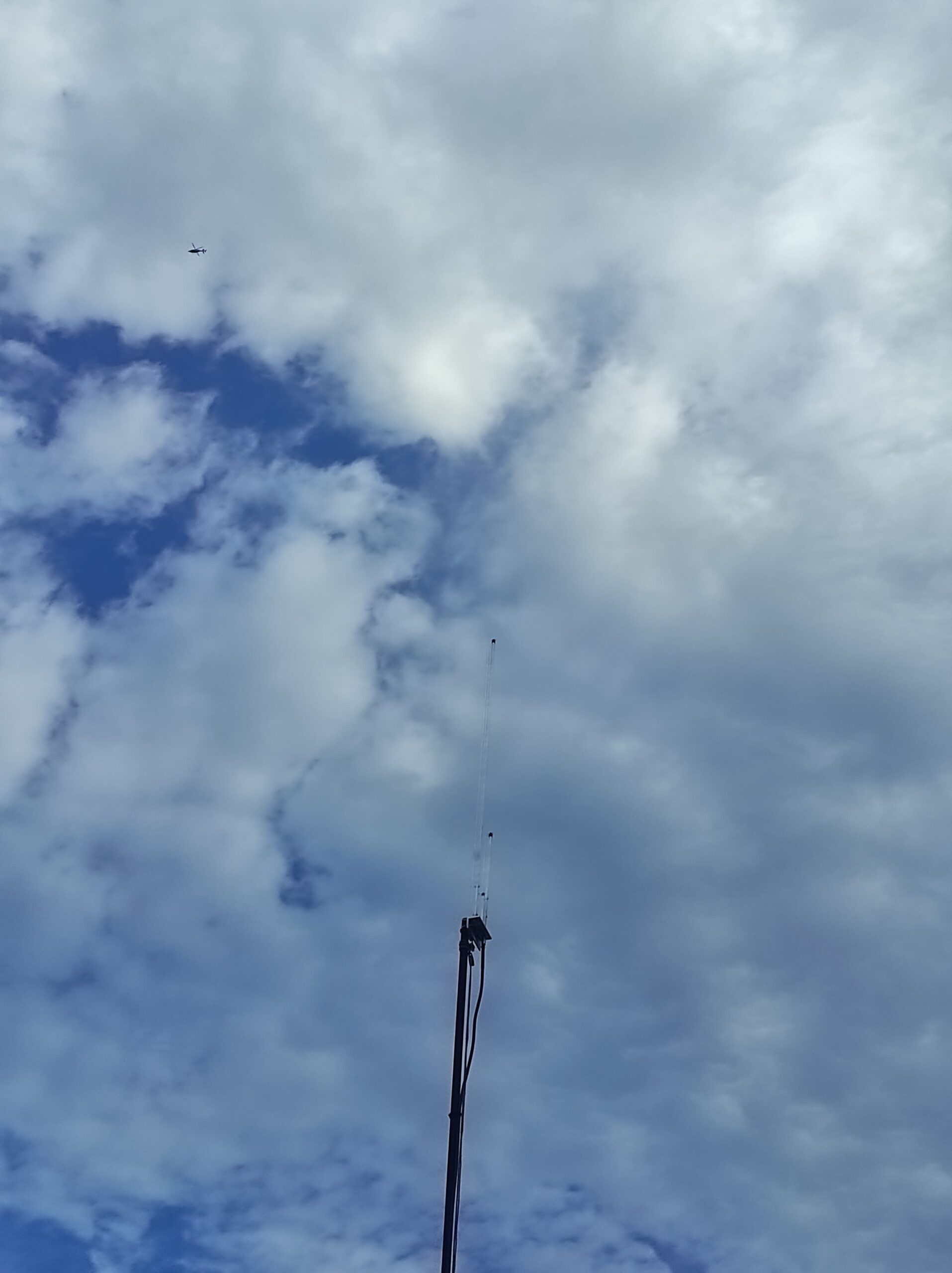

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ - Image 2

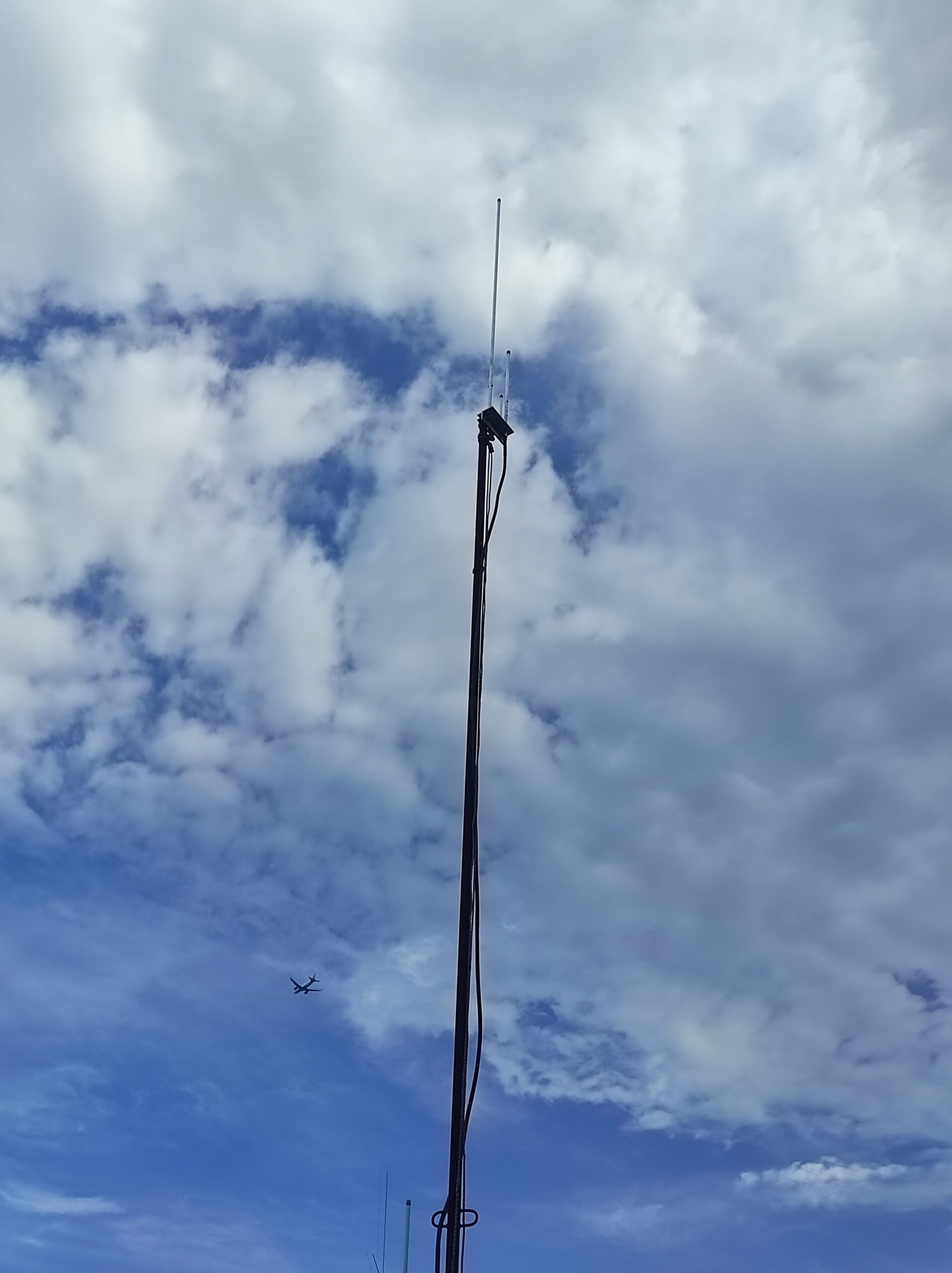

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ - Image 3

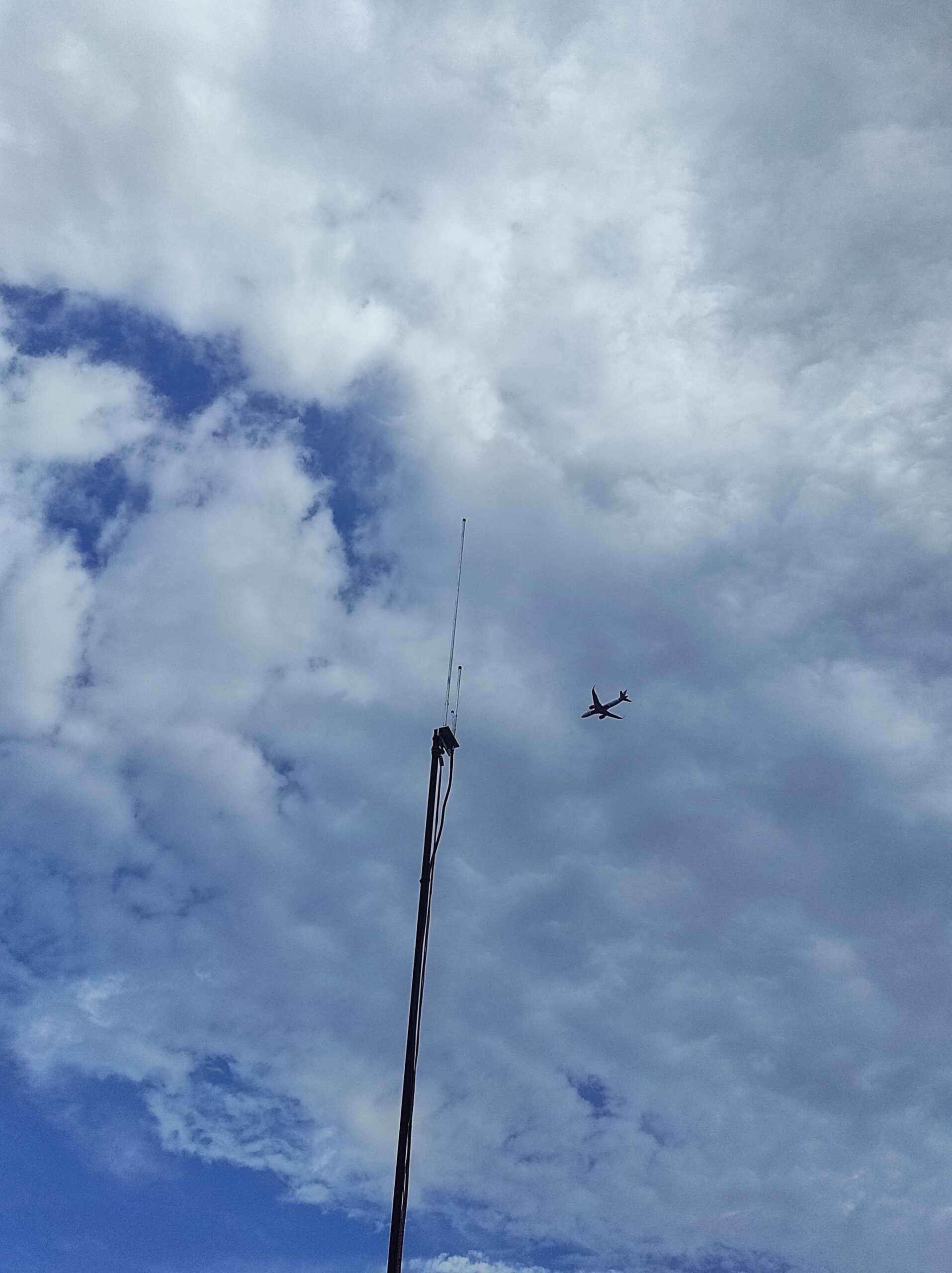

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ - Image 4

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ - Image 5

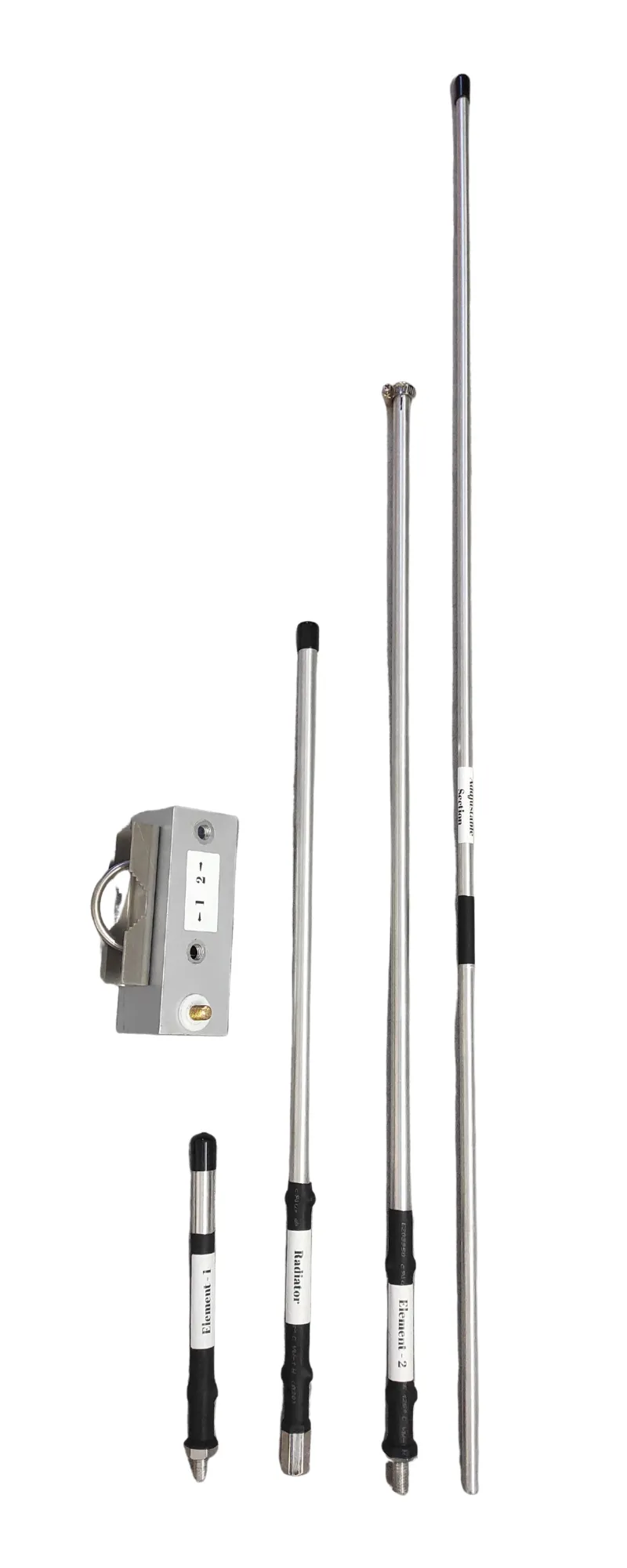

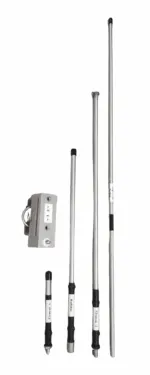

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ - Image 6

Dual Band UHF/VHF Open Sleeve J-pole Antenna. RH-DJ

₹3,000

Bands/Frequency	2M & 70 cm/ 144-146 MHz & 430-440 MHz
Gain	4.0 dBi at VHF & 5.5 dBi at UHF
F/B	0
VSWR	Less than 1.5
Impedance	50 ohms
Power rating	200 Watt
Radiation Pattern	Omnidirectional

SKU: RHDJ Category: ANTENNA Brand: RadioHub

ANTENNA

Guaranteed Safe Checkout

Antenna Length	150 cm
No. Of Elements	3
Mounting Mast Diameter	1.5 Inch
Longest Element length	1.4
Tapered Elements	12 mm to 9.5 mm
Connector	SO-239
Gain	4.0 dBi at 2M and 5.5 dBi at 70CM
Wind speed Survival	125 Km/h
Antenna Weight	1.4 kg
Material used	Aluminum and SS-304
Recommended Coax	RG213, HLF400, LMR200
Processing Time	7 Days

Weight	1.5 g
Dimensions	150 × 20 × 20 cm
