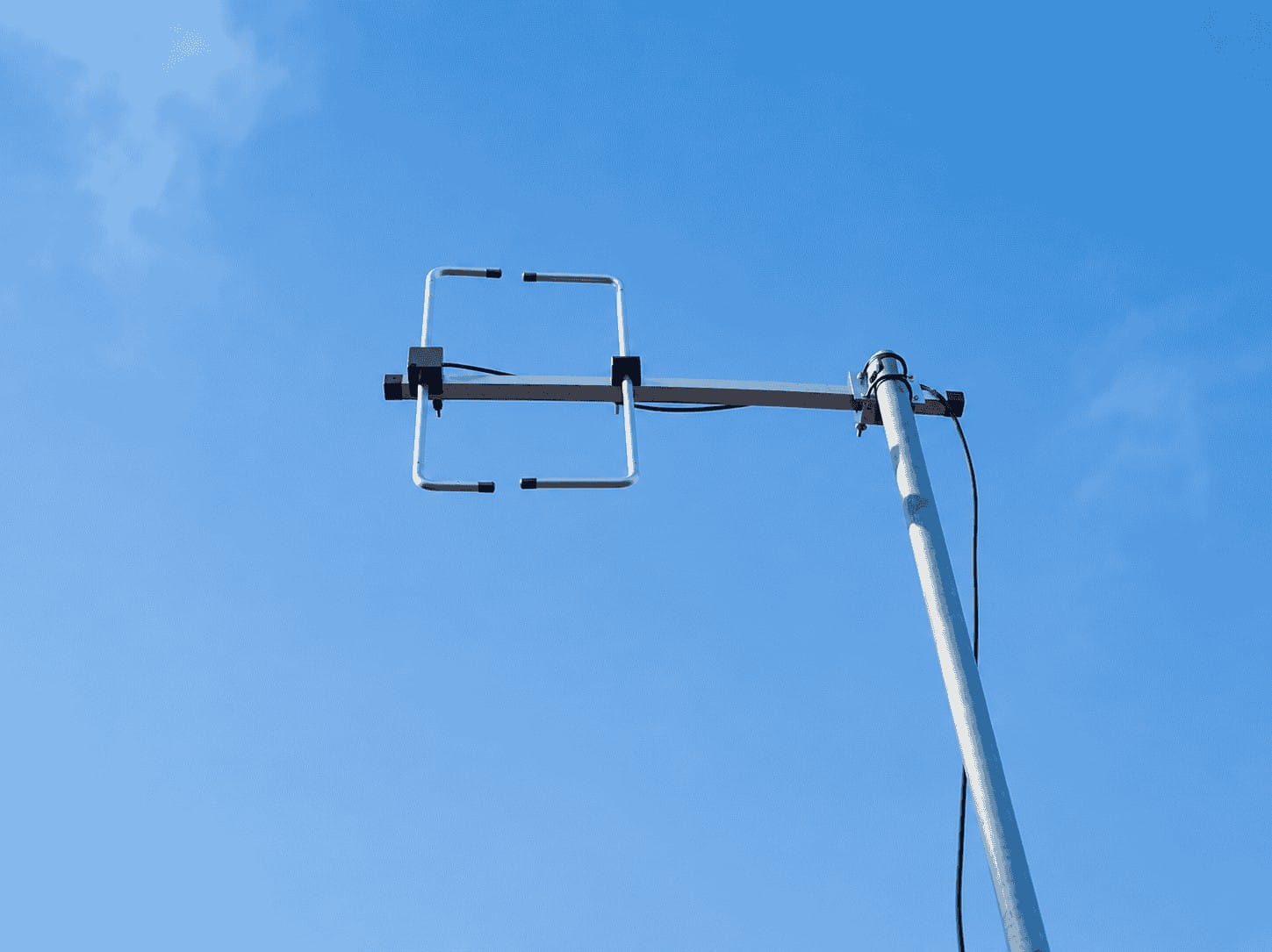

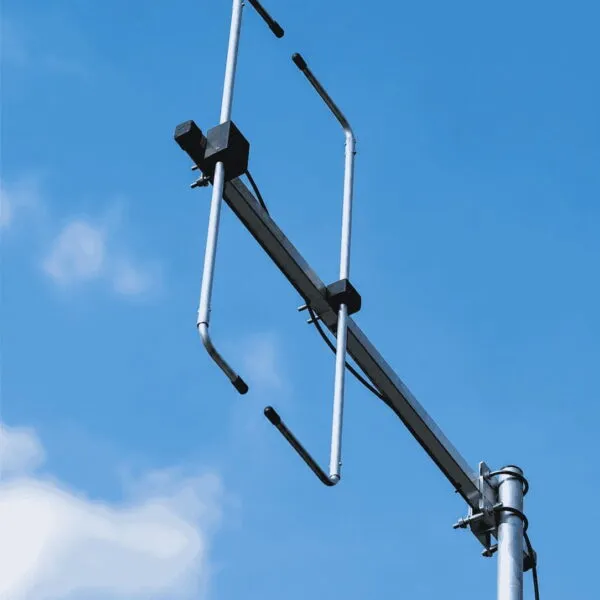

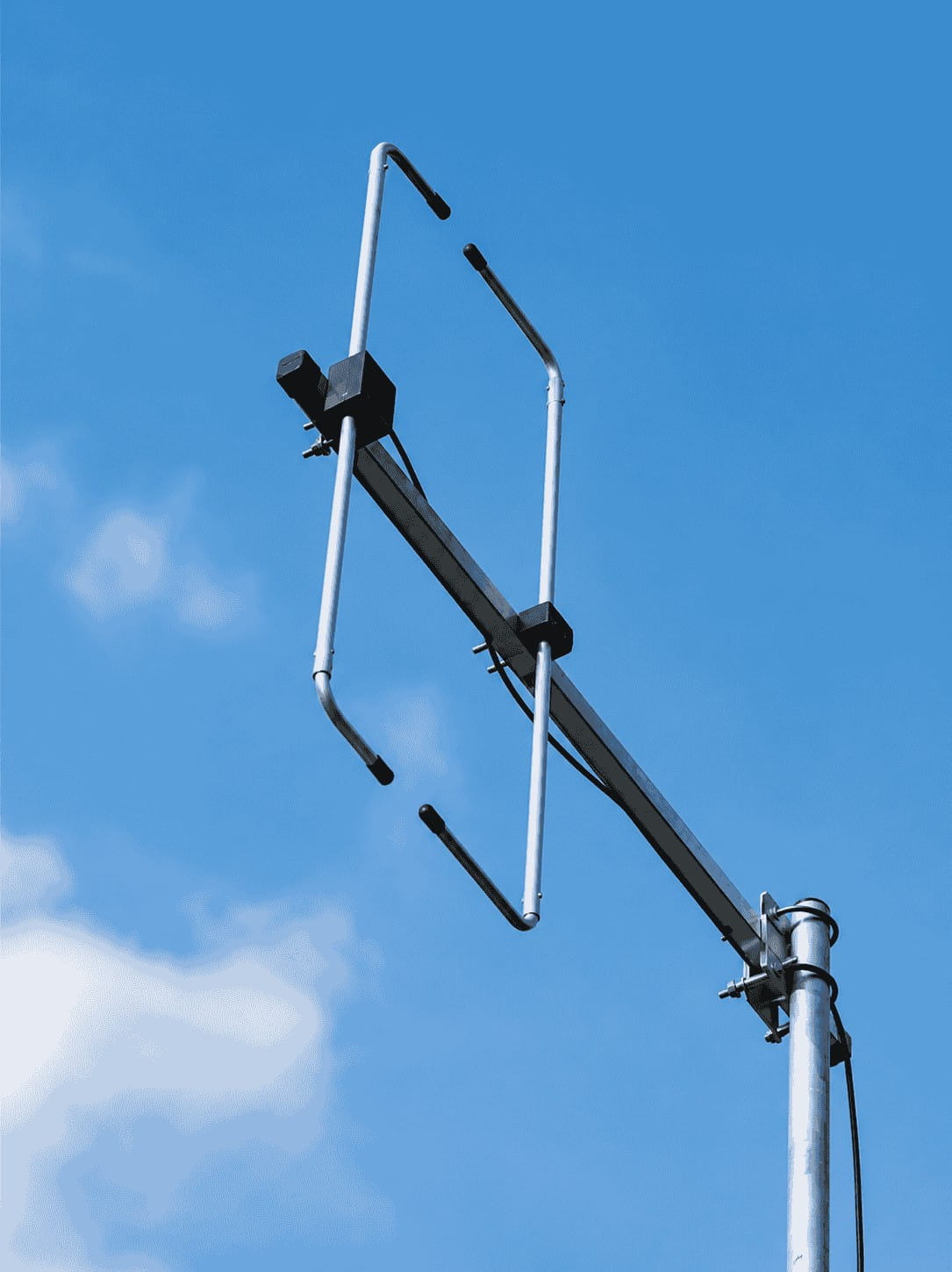

RHVM-2 VHF Moxon Antenna (142-148 MHz)

Product Description

RADIOHUB RHVM-2 VHF Moxon Antenna

The RADIOHUB RHVM-2 is a high-performance directional VHF Moxon antenna designed for amateur radio operators, repeater communication, emergency networks, and base station installations. Its compact Moxon rectangle design provides excellent forward gain, superior front-to-back rejection, and low noise reception.

Manufactured using high-quality aluminum alloy and weather-resistant hardware, the RHVM-2 delivers reliable performance for fixed and portable VHF operations.

Key Features

✔ Compact Moxon Rectangle Design
✔ Excellent Front-to-Back Ratio
✔ High Forward Gain Performance
✔ Low SWR Across Operating Frequency Range
✔ Lightweight & Durable Construction
✔ Easy Mast Mount Installation
✔ Suitable for Base Station & Portable Use
✔ Weather Resistant Outdoor Design

Technical Specifications

• Model: RHVM-2
• Frequency Range: 142-148 MHz
• Antenna Type: VHF Moxon Rectangle
• Polarization: Horizontal
• Impedance: 50 Ohms
• Gain: 6.3 dBi
• Front-to-Back Ratio: Up to 31 dB
• VSWR: Less than 1.3:1
• Maximum Power: 200 Watts PEP
• Connector: SO-239/N Female(Optional)
• Material: Aluminum Alloy
• Mounting: Mast Mount

Applications

• Amateur Radio Communication
• VHF Repeaters
• Emergency Communication Networks
• Portable Field Operations
• Base Station Installations
• DX and Long-Distance VHF Contacts

Package Includes

• 1 × RHVM-2 VHF Moxon Antenna
• Mounting Hardware Kit
• Mast Clamp Assembly
• Installation Guide

Why Choose RADIOHUB RHVM-2?

The RHVM-2 is engineered to provide outstanding directional performance while maintaining a compact footprint. It is ideal for operators seeking improved signal strength, reduced interference, and reliable communication performance on the VHF band.
