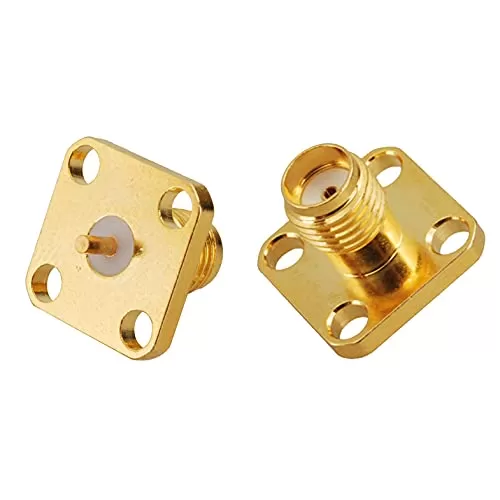

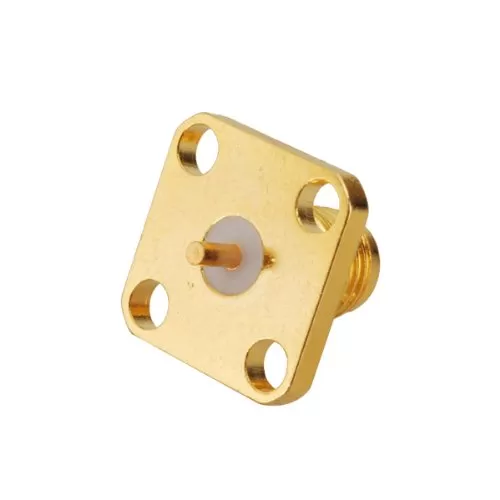

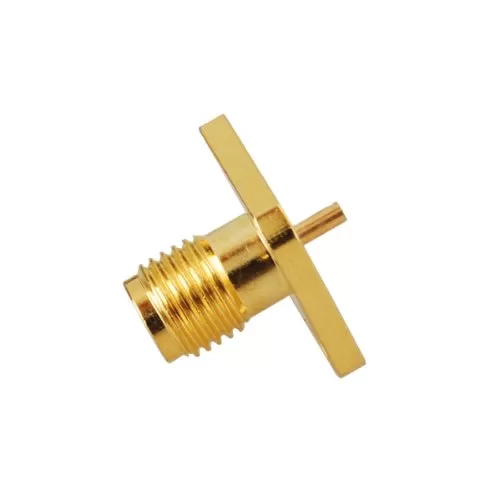

SMA F 4 HOLE TYPE
- APPLICATION : Wi-Fi Antenna / Signal / Repeaters / Radio / RF Coaxial Coax / Extension Cable / FPV Drone.
New Year's Biggest sale
Hurry and get attractive discounts on selected devices
RH_NEWYEAR_26
₹ 67.80
In stock
In stock
-
Pick up from the Radiohub Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
-
Warranty 1 year
Payment Methods:
Description
Product description Specification: Condition: 100% Brand New Color: Gold Tone Frequency range: DC 0-12.4ghz (flexible cable) DC 0-18ghz (semi-rigid cable) Temperature range: – 65 ～ + 165 ° C (PE cable – 40 ～ + 85 ° C) Contact resistance: between inner conductors ≤ 3 m Ω, between outer conductors ≤ 2 m Ω Insulation resistance: ≥ 5000 Ω Loss: ≤ 0.15 dB / 6GHz VSWR 1: straight flexible cable ≤ 1.10 + 0.002f, semi-rigid cable ≤ 1.05 + 0.001f VSWR 2: bending flexible cable ≤ 1.20 + 0.003f, semi-rigid cable ≤ 1.10 + 0.001f Working voltage: 335vrms Withstand voltage: 1000vrms Impedance: 50 ohm
Technical Highlights
Dimension
| Dimensions | 10 × 10 × 10 cm |
|---|
