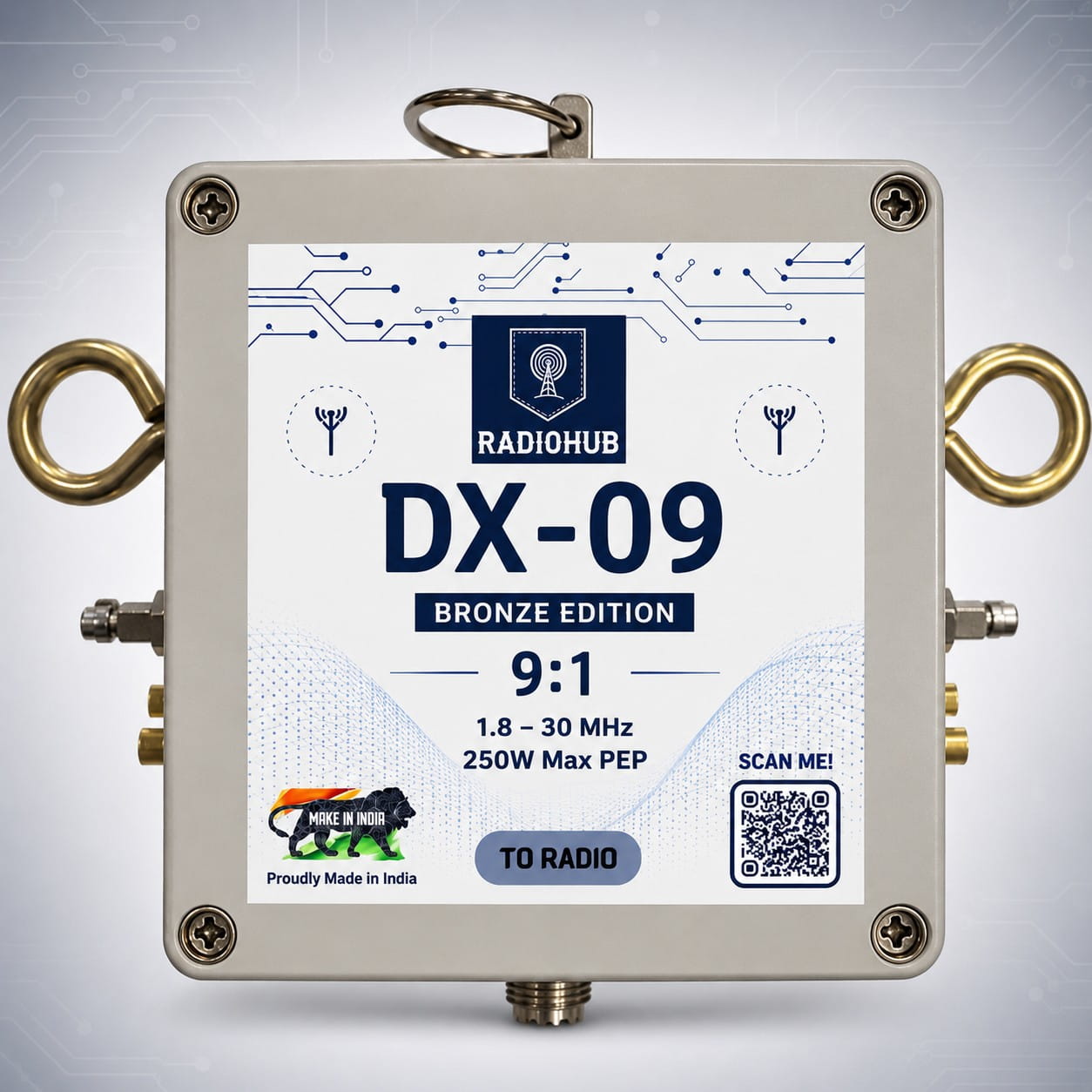

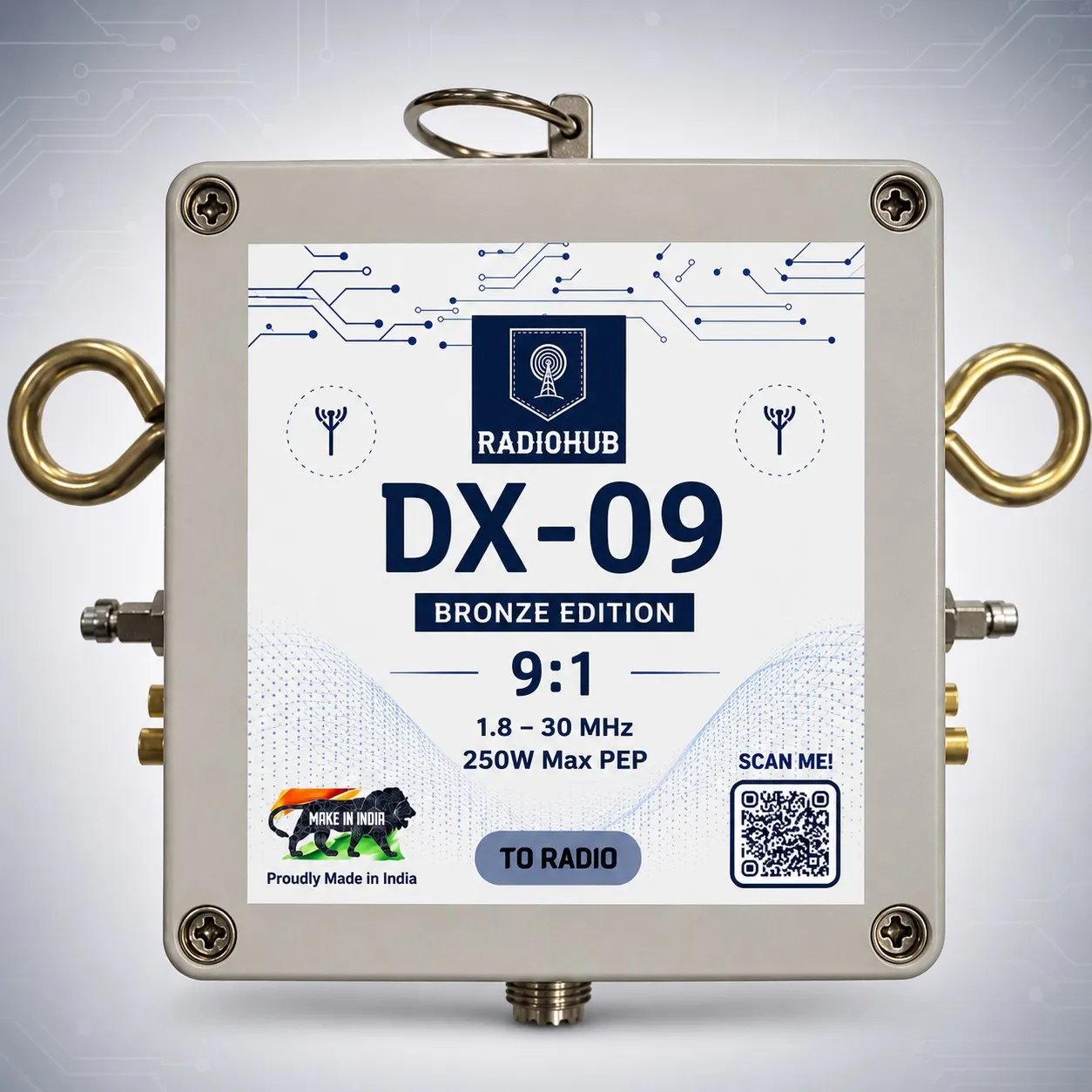

RADIOHUB DX-09 9:1 UnUn Wideband HF Antenna Transformer (1.8–30 MHz)

Professional Wideband Matching Transformer for Random Wire and Long Wire HF Antennas

The RADIOHUB DX-09 9:1 UnUn is a high-performance wideband impedance matching transformer designed specifically for amateur radio operators, shortwave listeners, emergency communication enthusiasts, and portable HF station operators. Built using premium-quality materials and engineered for reliable operation across the HF spectrum, the DX-09 provides an efficient interface between high-impedance wire antennas and standard 50-ohm coaxial feed systems.

Random wire and long wire antennas are among the most versatile antenna solutions available to radio operators. However, these antennas often present impedance values significantly higher than the standard 50-ohm impedance expected by modern transceivers. The RADIOHUB DX-09 solves this challenge by transforming the antenna impedance through a broadband 9:1 impedance ratio, allowing improved power transfer and enhanced operational performance across multiple HF bands.

Designed and manufactured in India by RADIOHUB, the DX-09 combines rugged construction, weather-resistant housing, and carefully selected ferrite materials to ensure dependable performance in both fixed and portable installations.

Why Choose a 9:1 UnUn?

A 9:1 UnUn (Unbalanced to Unbalanced Transformer) is commonly used with random wire and long wire antennas. These antennas can exhibit impedances ranging from several hundred ohms to over one thousand ohms depending on length, frequency, and installation conditions.

The DX-09 transforms these higher impedances closer to the 50-ohm impedance required by modern transceivers and feedlines. This results in:

• Improved antenna matching

• Better RF energy transfer

• Reduced feedline losses

• Easier antenna tuning

• Enhanced multiband operation

• Greater flexibility in antenna installation

The DX-09 works exceptionally well with external antenna tuners, enabling operators to cover multiple HF bands using a single wire antenna system.

Designed for Amateur Radio Operators

Whether you operate from a home station, portable field setup, emergency communication location, or DX expedition site, the RADIOHUB DX-09 is designed to provide dependable performance.

Ideal applications include:

• Random Wire Antennas

• Long Wire Antennas

• Portable HF Stations

• Field Day Operations

• POTA Activations

• SOTA Activations

• Emergency Communication Systems

• Shortwave Listening Stations

• Temporary Antenna Installations

• Amateur Radio Base Stations

The compact and lightweight design makes it easy to carry during outdoor operations while maintaining excellent durability.

Premium Construction

RADIOHUB has focused on durability and reliability in every aspect of the DX-09 design.

The unit is housed in a strong weather-resistant enclosure suitable for outdoor installation. Stainless steel mounting hardware and corrosion-resistant components ensure long service life even in challenging environmental conditions.

The internal transformer utilizes carefully selected ferrite cores and optimized winding techniques to provide broadband performance throughout the HF spectrum. This design minimizes losses while maintaining stable operation over a wide frequency range.

Wide Frequency Coverage

The DX-09 covers the entire HF amateur radio spectrum from 1.8 MHz to 30 MHz, making it suitable for operation on popular amateur radio bands including:

• 160 Meter Band

• 80 Meter Band

• 60 Meter Band

• 40 Meter Band

• 30 Meter Band

• 20 Meter Band

• 17 Meter Band

• 15 Meter Band

• 12 Meter Band

• 10 Meter Band

This broad coverage allows a single antenna installation to support operation across multiple bands when used with an appropriate antenna tuner.

Built for Portable Operations

Portable HF operating continues to grow in popularity among amateur radio operators. Whether activating a park, mountain summit, beach location, or temporary field station, the DX-09 provides a practical solution for quickly deploying wire antennas.

The compact design occupies minimal space in a go-kit while offering reliable performance when deployed in the field. Simply connect your random wire antenna, attach the feedline, and operate with confidence.

Key Features

✓ Broadband 9:1 Impedance Transformation

✓ Wide Frequency Coverage 1.8–30 MHz

✓ Suitable for Random Wire and Long Wire Antennas

✓ Rugged Weather-Resistant Enclosure

✓ Low-Loss Ferrite Transformer Design

✓ Stainless Steel Hardware

✓ Compact Portable Construction

✓ Compatible with External Antenna Tuners

✓ Ideal for Amateur Radio and SWL Applications

✓ Proudly Designed and Manufactured by RADIOHUB

Technical Specifications

Brand: RADIOHUB

Model: DX-09

Type: Wideband 9:1 UnUn

Frequency Range: 1.8 MHz – 30 MHz

Impedance Ratio: 9:1

Input Impedance: 50 Ohms

Typical Antenna Impedance: Approximately 450 Ohms

Connector Type: SO-239

Antenna Connection: Heavy Duty Terminal Posts

Housing: Weather-Resistant Enclosure

Application: Random Wire and Long Wire Antennas

Installation: Portable and Fixed Stations

Country of Origin: India

Package Contents

• 1 × RADIOHUB DX-09 9:1 UnUn

• Mounting Hardware (if applicable)

• Product Identification Label

The RADIOHUB DX-9 9:1 UnUn is an excellent choice for amateur radio operators seeking a reliable, broadband matching solution for random wire and long wire antennas. Combining robust construction, wide frequency coverage, and dependable performance, it is the ideal companion for both home stations and portable HF adventures.
