EVOX X1 Mini License-Free PMR446 Handheld Radio(walkie talkie) with Standard Accessories

Why Choose EVOX X1 Mini?

The EVOX X1 Mini is designed for users who require dependable communication in a compact and easy-to-carry form factor. Whether you are working in security operations, managing events, coordinating construction teams, or organizing outdoor activities, the X1 Mini provides clear and reliable communication when it matters most.

Its lightweight design allows comfortable all-day use, while the rugged construction ensures durability in demanding environments. The high-capacity 3000mAh lithium battery provides extended operating time, reducing the need for frequent charging and ensuring uninterrupted communication throughout the day.

Key Features

• License-Free PMR446 Operation
• 16 Communication Channels
• 3000mAh Lithium Battery
• USB Type-C Charging Support
• VOX Hands-Free Communication
• Channel Scan Function
• Voice Prompt Function
• Power Saving Mode
• Low Voltage Alert
• Emergency SOS Function
• Compact and Lightweight Design
• Rugged Construction for Daily Use

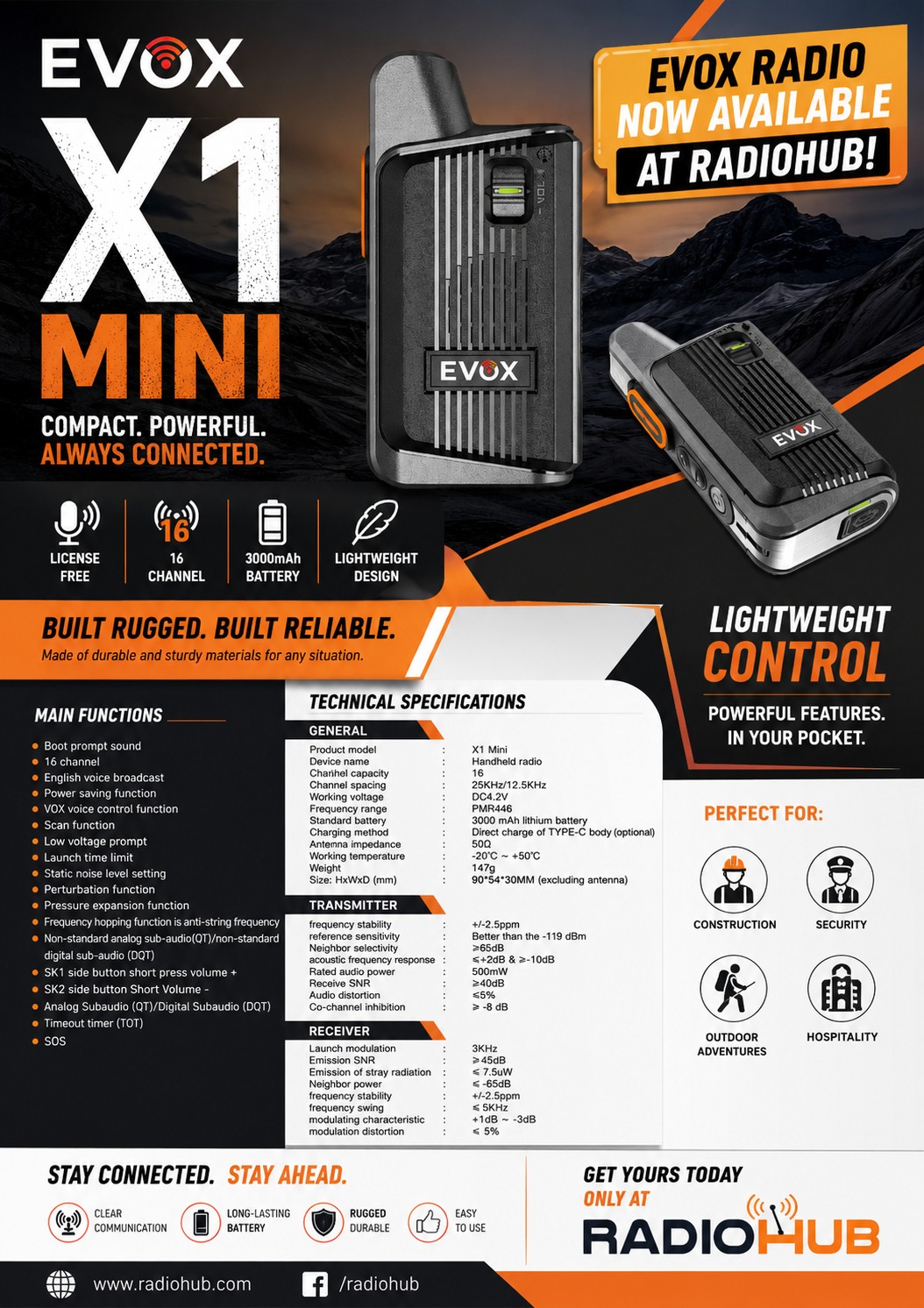

Technical Specifications

General

Product Model: EVOX X1 Mini
Device Type: Handheld Radio
Channel Capacity: 16 Channels
Channel Spacing: 25KHz / 12.5KHz
Working Voltage: DC 4.2V
Frequency Range: PMR446
Battery Capacity: 3000mAh Lithium Battery
Charging Method: USB Type-C Charging
Antenna Impedance: 50 Ohms
Operating Temperature: -20°C to +50°C
Weight: 147g
Dimensions: 90 × 54 × 30 mm (excluding antenna)

Transmitter Specifications

Frequency Stability: ±2.5ppm
Reference Sensitivity: Better than -119dBm
Adjacent Channel Selectivity: ≥65dB
Audio Frequency Response: +2dB to -10dB
RF Output Power: 500mW
Receive SINR: ≥40dB
Audio Distortion: ≤5%
Co-Channel Rejection: ≥ -8dB

Receiver Specifications

Launch Modulation: 3KHz
Emission SNR: ≥45dB
Spurious Radiation: ≤7.5uW
Adjacent Channel Power: ≤ -65dB
Frequency Stability: ±2.5ppm
Frequency Swing: ≤5KHz
Modulation Characteristics: +1dB to -3dB
Modulation Distortion: ≤5%

Advanced Communication Features

The EVOX X1 Mini incorporates a range of practical communication features to improve user experience and operational efficiency.

The built-in VOX function enables hands-free operation, making it ideal for users who need to communicate while performing other tasks. The channel scanning function helps users quickly locate active channels, while voice prompts simplify operation for both new and experienced users.

Additional features such as low-voltage alerts, power-saving mode, analog and digital sub-audio support, and time-out timer protection contribute to reliable and efficient performance.

Built for Professional Applications

The EVOX X1 Mini is suitable for a wide range of professional applications, including:

• Security Services
• Construction Sites
• Hotels and Hospitality
• Event Management
• Retail Operations
• Warehouses and Logistics
• Educational Institutions
• Outdoor Recreation Activities

Its compact size and dependable performance make it an excellent communication solution for organizations seeking cost-effective and reliable two-way radio communication.

Battery and Charging

Equipped with a powerful 3000mAh lithium battery, the EVOX X1 Mini delivers long operating time between charges. The convenient USB Type-C charging system allows users to recharge the radio using modern charging adapters, power banks, vehicle chargers, and USB charging stations.

This flexibility makes the radio particularly useful for mobile teams and field operations.

RADIOHUB Assurance

RADIOHUB is committed to providing quality communication equipment for professional and amateur users. Every EVOX X1 Mini radio is supplied with standard accessories and backed by RADIOHUB’s customer support.

Choose the EVOX X1 Mini for dependable, license-free communication, rugged durability, lightweight portability, and excellent value.

Package Includes

• EVOX X1 Mini Radio
• Lithium Battery
• USB Type-C Charging Cable
• Belt Clip
• User Manual
• Standard Accessories
