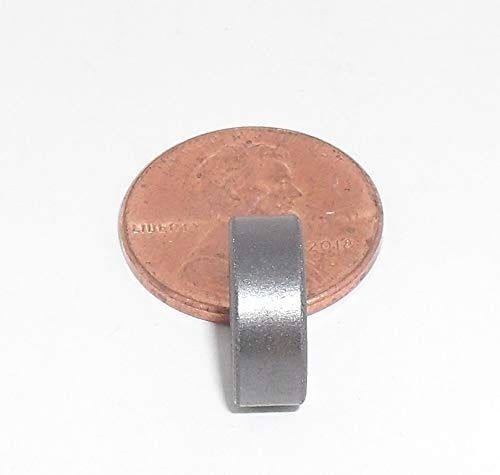

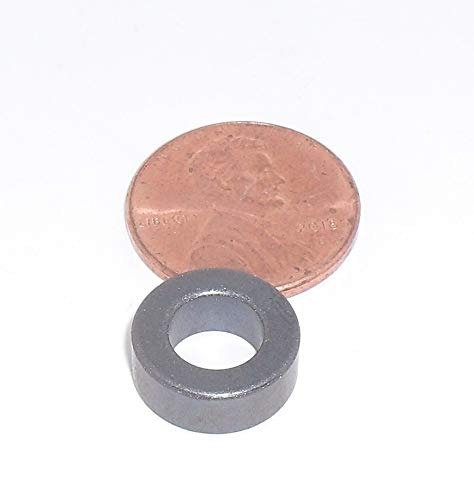

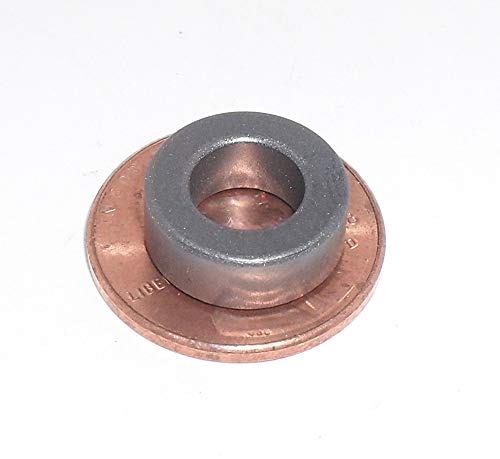

The FT82-43 is a high-quality Type 43 manganese-zinc (MnZn) ferrite toroid, engineered for use in RF broadband transformers, baluns, and common-mode chokes. With a larger size than FT50 or FT37 cores, the FT82-43 provides higher power handling, greater inductance, and better impedance transformation in the 1 MHz to 50 MHz range.
It is a popular choice for QRO HF antenna systems, noise suppression, and EMI/RFI control, suitable for both amateur and commercial RF applications.
🔧 Technical Specifications:
| Parameter | Specification |
|---|---|
| Core Material | Type 43 Ferrite (MnZn) |
| Outer Diameter (OD) | 20.8 mm (0.820 in) |
| Inner Diameter (ID) | 12.7 mm (0.500 in) |
| Height (Thickness) | 6.35 mm (0.250 in) |
| Initial Permeability (µi) | ~850 |
| AL Value (nH/T²) | ~670 nH per turn² |
| Frequency Range | 1 MHz – 50 MHz |
| Power Handling | Suitable for up to ~150W (depending on design) |
| Operating Temp Range | -55°C to +125°C |
| Finish | Smooth black ferrite coating |
